مواصفات سيارة مازدا CX-5

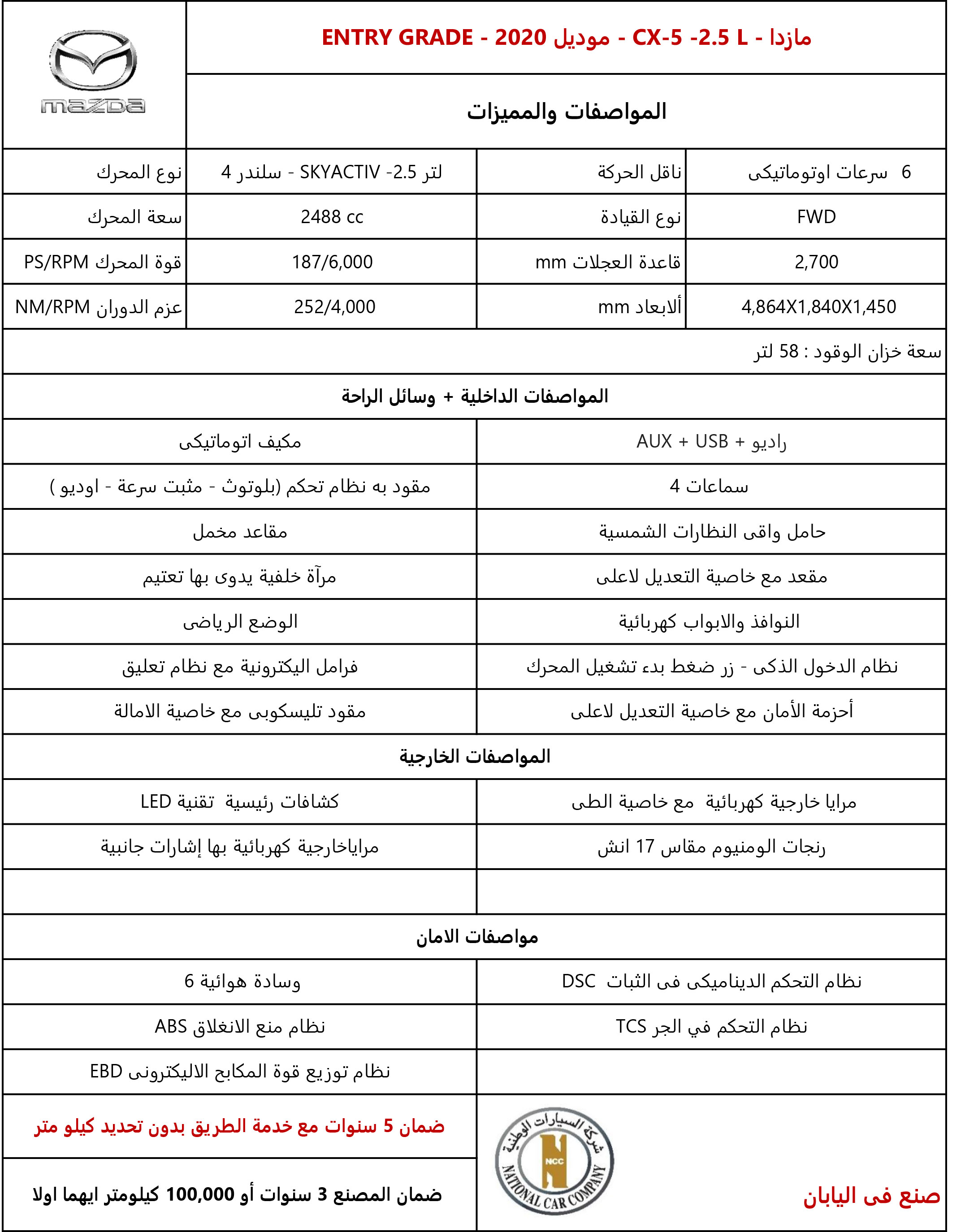

مواصفات سيارة مازدا CX-5

مواصفات سيارة مازدا CX-5

• ENGINE & MECHANICS

  ENGINE

  2.5L
  Engine type : SKYACTIV®-G 2.5L DOHC 16-valve 4-cylinder with Cylinder Deactivation
  Maximum power : 139.4 kW @ 6,000 rpm / Horsepower 187 hp @ 6,000 rpm
  Torque : 252.1 Nm @ 4,000 rpm / Torque 186 lb-ft @ 4,000 rpm
  Redline : 6,500 rpm
  Displacement (cc) : 2488
  Bore x stroke (mm) : 89 x 100
  Compression ratio : 13.0 : 1
  Fuel system: Advanced Direct Injection
  Recommended fuel : Regular unleaded
  Valvetrain : Chain-driven dual overhead cams, 4-valves per cylinder with variable valve timing (VVT)
  Ignition system : Direct coil-on-plug electronic ignition with platinum-tipped spark plugs
  Engine block : Aluminum alloy
  Cylinder head : Aluminum alloy
  SKYACTIV-VEHICLE DYNAMICS with G-Vectoring Control Plus

  DRIVETRAIN

  Type : Front-wheel drive (FWD)
  6-Speed automatic transmission SKYACTIV®-Drive with manual-shift and Sport mode
  GEAR RATIOS (:1) 6 AT
  1st 3.552
  2nd 2.022
  3rd 1.452
  4th 1.000
  5th 0.708
  6th 0.599
  Reverse 3.893
  Final drive 4.325 (FWD)

  CHASSIS

  Brakes: 4-wheel disc
  - Front 297-mm ventilated disc
  - Rear 302-mm solid disc
  - ABS 4-wheel, 4-channel with Electronic Brake Force Distribution (EBD) and Brake Assist (BA)
  Steering type : Power rack-and-pinion with variable assist
  Electronic Power Assist Steering (EPAS)
  Overall steering ratio - 15.5:1
  Turning circle diameter, curb-to-curb (m) : 10.9
  Suspension 4-wheel independent
  - Front MacPherson strut with stabilizer bar
  - Rear Multilink with stabilizer bar

  WEIGHTS & CAPACITIES

  Curb weight (kg) : 1,616
  Towing Capacity (kg) : 907.1
  Fuel capacity (liters) : 56

• INTERIOR

  COMFORT & CONVENIENCE

  Manual AC
  Power windows with driver's one-touch down/up feature
  Push Button Start
  Manual Day/Night rearview mirror
  Electric parking brake with Auto Hold
  Tilt & telescopic steering column
  Map lights, Dome light and Cargo area light
  Rear window defogger with timer

  STORAGE

  Overhead console with sunglasses holder
  Center console armrest with tray and covered storage bin
  Front and rear door bottle holders/storage
  Driver and Front passenger seatback pockets

  SEATING & TRIM

  5-passenger seating capacity
  6-way manual driver's seat
  40/20/40 split one-touch fold-down
  Adjustable front and rear headrests
  Fabric seats
  Carpet floor mats

  AUDIO & INFOTAINMENT

  4 speakers
  AM/FM Radio + Aux + USB
  Bluetooth® hands-free phone and audio streaming capability
  Steering wheel-mounted audio, phone and cruise controls

  INSTRUMENTATION

  Speedometer, tachometer and fuel gauge
  Ambient temperature & clock display
  Multi-Information Display (MID) with Trip computer

• EXTERIOR

  BODY

  LED Headlights with Auto-leveling
  Rain-sensing variable-intermittent windshield wipers
  Intermittent rear wiper/washer
  Body-colored power side mirrors with integrated turn signals
  Roof-mounted "shark fin" antenna
  Body-colored rear roof spoiler
  Dual exhaust outlets

  WHEELS & TIRES

  17’’ Alloy wheel
  Temporary spare tire T145/90D16

  EXTERIOR DIMENSIONS

  Wheelbase (mm) : 2,697
  Track, front (mm) : 1,595
  Track, rear (mm) : 1,521
  Length (mm) : 4,549
  Width (mm) : 1,842
  Height (mm) up to roof, without roof rails : 1,661
  Height (mm) up to roof, without roof rails, up to sharkfin antenna : 1,679
  Minimum ground clearance - Unladen (mm) : 190.5

• SAFETY & SECURITY

  SAFETY

  6 Airbags
  -Advanced front air bags with seat belt-use, passenger-weight sensors
  -Front side-impact air bags and side-impact air curtains with rollover protection
  3-point seat belts for all seating positions
  Front seat belt pretensioners with force limiters
  Side-impact door beams
  Engine-immobilizer antitheft system
  Hill Launch Assist
  LATCH rear seat child safety seat anchors & upper tether anchors
  Child safety rear door locks
  Anti-lock Brake System (ABS) with Electronic Brake Force Distribution (EBD) & Brake Assist (BA)
  Dynamic Stability Control (DSC)and Traction Control System (TCS)
  Tire Pressure Monitoring System (TPMS)

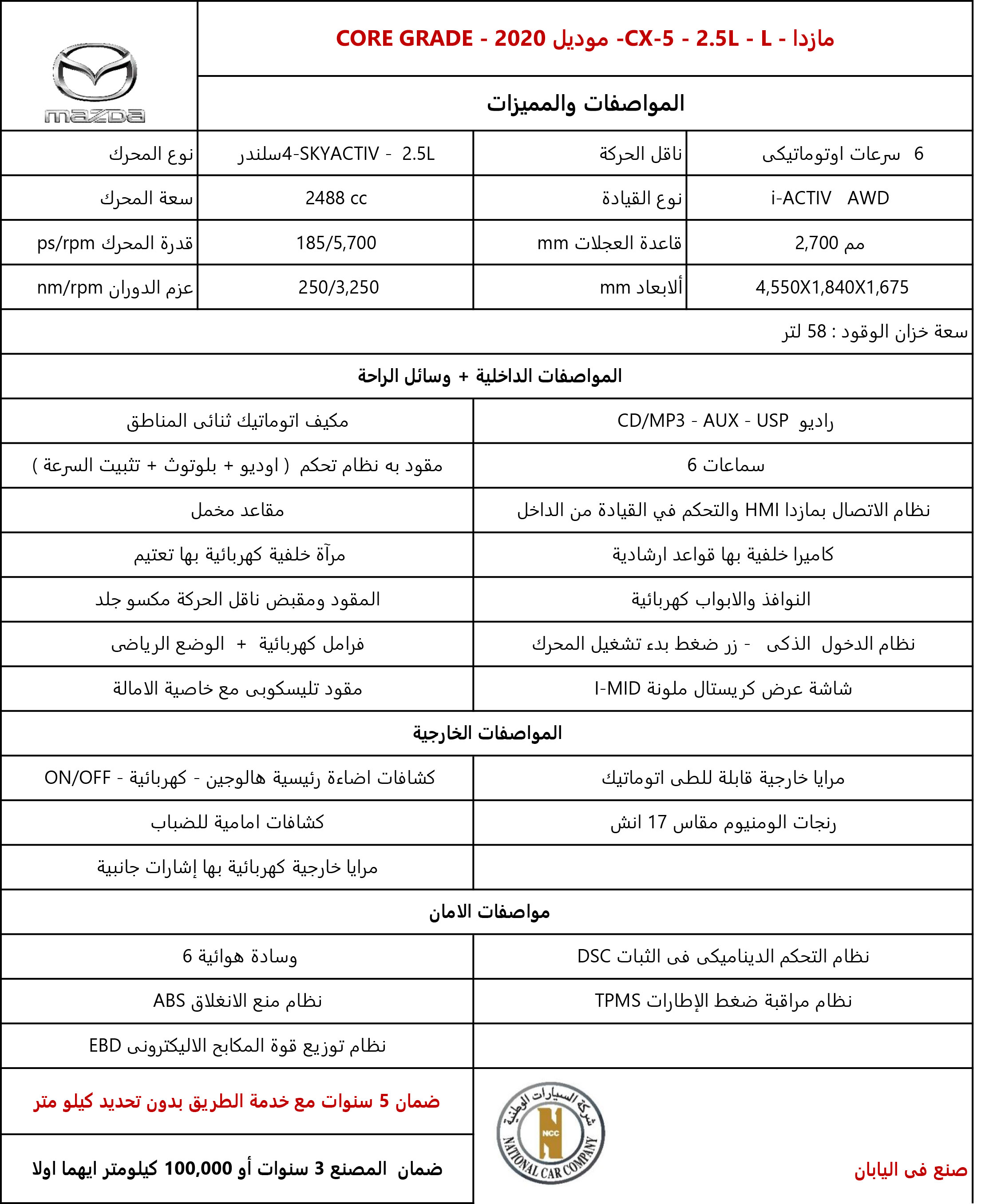

مواصفات سيارة مازدا CX-5

• ENGINE & MECHANICS

  ENGINE

  2.5L
  Engine type: SKYACTIV®-G 2.5L DOHC 16-valve 4-cylinder with Cylinder Deactivation
  Maximum power: 139.4 kW @ 6,000 rpm / Horsepower 187 hp @ 6,000 rpm
  Torque: 252.1 Nm @ 4,000 rpm / Torque 186 lb-ft @ 4,000 rpm
  Redline: 6,500 rpm
  Displacement (cc): 2488
  Bore x stroke (mm): 89 x 100
  Compression ratio: 13.0 : 1
  Fuel system: Advanced Direct Injection
  Recommended fuel: Regular unleaded
  Valvetrain: Chain-driven dual overhead cams, 4-valves per cylinder with variable valve timing (VVT)
  Ignition system: Direct coil-on-plug electronic ignition with platinum-tipped spark plugs
  Engine block: Aluminum alloy
  Cylinder head: Aluminum alloy
  SKYACTIV-VEHICLE DYNAMICS with G-Vectoring Control Plus

  DRIVETRAIN

  Type : i-ACTIV AWD®
  6-Speed automatic transmission SKYACTIV®-Drive with manual-shift and Sport mode
  GEAR RATIOS (:1) 6 AT
  1st 3.552
  2nd 2.022
  3rd 1.452
  4th 1.000
  5th 0.708
  6th 0.599
  Reverse 3.893
  Final drive 4.624

  CHASSIS

  Brakes: 4-wheel disc
  - Front 297-mm ventilated disc
  - Rear 302-mm solid disc
  - ABS 4-wheel, 4-channel with Electronic Brake Force Distribution (EBD) and Brake Assist (BA)
  Steering type: Power rack-and-pinion with variable assist
  Electronic Power Assist Steering (EPAS)
  Overall steering ratio - 15.5:1
  Turning circle diameter, curb-to-curb (m) 10.9
  Suspension 4-wheel independent
  - Front MacPherson strut with stabilizer bar
  - Rear Multilink with stabilizer bar

  WEIGHTS & CAPACITIES

  Curb weight (kg) : 1,675.1
  Towing Capacity (kg) : 907.1
  Fuel capacity (liters) : 57.9

• INTERIOR

  COMFORT & CONVENIENCE

  Dual-zone automatic climate control with pollen filter
  Rear air conditioning vents
  Power windows with driver's one-touch down/up feature
  Push Button Start
  Auto-dimming rearview mirror
  Electric parking brake with Auto Hold
  Tilt & telescopic steering column
  Map lights, Dome light and Cargo area light
  Rear window defogger with timer

  STORAGE

  Overhead console with sunglasses holder
  Center console armrest with tray and covered storage bin
  Rear seat center armrest with integrated cup holders
  Front and rear door bottle holders/storage
  Driver and Front passenger seatback pockets

  SEATING & TRIM

  5-passenger seating capacity
  6-way manual driver's seat
  40/20/40 split one-touch fold-down
  Adjustable front and rear headrests
  Fabric seats
  Leather-wrapped steering wheel
  Leather-wrapped gear selector
  Carpet floor mats

  AUDIO & INFOTAINMENT

  7" full-color touch screen display
  6 speakers
  Rearview Camera
  MAZDA CONNECT™ Infotainment System
  - Infotainment system voice command
  - Multifunction Commander Control
  - Radio Broadcast Data System program information
  - SMS text message audio delivery and reply
  Apple CarPlay and Android Auto integration
  CD Player (MP3 compatible)
  Auxiliary audio input jack
  USB Inputs, 2 front and 2 rear
  Steering wheel-mounted audio, phone and cruise controls

  INSTRUMENTATION

  Speedometer, tachometer and fuel gauge
  Ambient temperature & clock display
  Multi-Information Display (MID) with Trip computer

• EXTERIOR

  BODY

  LED Headlights with Auto-leveling
  LED fog lights
  LED Combination taillights
  Adaptive Front-lighting System (AFS)
  Auto on/off headlights
  Rain-sensing variable-intermittent windshield wipers
  Intermittent rear wiper/washer
  Body-colored power side mirrors with integrated turn signals
  Roof-mounted "shark fin" antenna
  Body-colored rear roof spoiler
  Dual exhaust outlets

  WHEELS & TIRES

  17’’ Alloy wheel
  Temporary spare tire T145/90D16

  EXTERIOR DIMENSIONS

  Wheelbase (mm) : 2,697
  Track, front (mm) : 1,595
  Track, rear (mm) : 1,521
  Length (mm) : 4,549
  Width (mm) : 1,842
  Height (mm) up to roof, without roof rails : 1,659
  Height (mm) up to roof, without roof rails, up to sharkfin antenna : 1,679
  Minimum ground clearance - Unladen (mm) : 190.5

• SAFETY & SECURITY

  SAFETY

  6 Airbags
  -Advanced front air bags with seat belt-use, passenger-weight sensors
  -Front side-impact air bags and side-impact air curtains with rollover protection
  3-point seat belts for all seating positions
  Front seat belt pretensioners with force limiters
  Side-impact door beams
  Engine-immobilizer antitheft system
  Hill Launch Assist
  LATCH rear seat child safety seat anchors & upper tether anchors
  Child safety rear door locks
  Anti-lock Brake System (ABS) with Electronic Brake Force Distribution (EBD) & Brake Assist (BA)
  Dynamic Stability Control (DSC)and Traction Control System (TCS)
  Tire Pressure Monitoring System (TPMS)

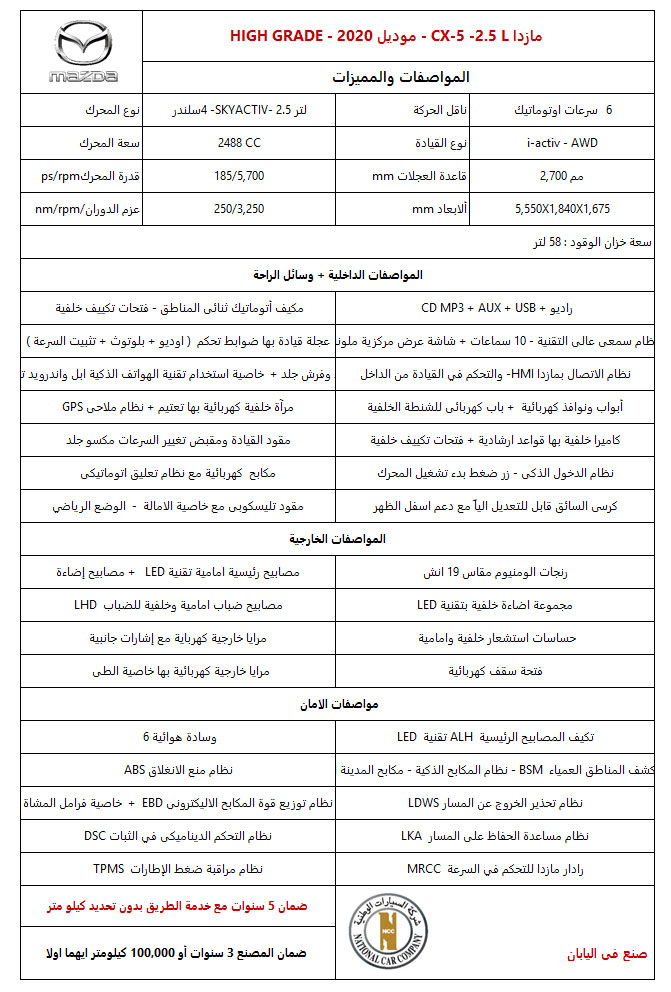

مواصفات سيارة مازدا CX-5

مواصفات سيارة مازدا CX-5

• ENGINE & MECHANICS

  ENGINE

  2.5L
  Engine type : SKYACTIV®-G 2.5L DOHC 16-valve 4-cylinder with Cylinder Deactivation
  Maximum power : 139.4 kW @ 6,000 rpm / Horsepower 187 hp @ 6,000 rpm
  Torque: 252.1 Nm @ 4,000 rpm / Torque 186 lb-ft @ 4,000 rpm
  Redline: 6,500 rpm
  Displacement (cc) : 2488
  Bore x stroke (mm): 89 x 100
  Compression ratio : 13.0 : 1
  Fuel system: Advanced Direct Injection
  Recommended fuel : Regular unleaded
  Valvetrain : Chain-driven dual overhead cams, 4-valves per cylinder with variable valve timing (VVT)
  Ignition system : Direct coil-on-plug electronic ignition with platinum-tipped spark plugs
  Engine block : Aluminum alloy
  Cylinder head : Aluminum alloy
  SKYACTIV-VEHICLE DYNAMICS with G-Vectoring Control Plus

  DRIVETRAIN

  Type : i-ACTIV AWD®
  6-Speed automatic transmission SKYACTIV®-Drive with manual-shift and Sport mode
  GEAR RATIOS (:1) 6 AT
  1st 3.552
  2nd 2.022
  3rd 1.452
  4th 1.000
  5th 0.708
  6th 0.599
  Reverse 3.893
  Final drive 4.624(AWD)

  CHASSIS

  Brakes : 4-wheel disc
  - Front : 297-mm ventilated disc
  - Rear : 302-mm solid disc
  - ABS 4-wheel, 4-channel with Electronic Brake Force Distribution (EBD) and Brake Assist (BA)
  Steering type: Power rack-and-pinion with variable assist
  Electronic Power Assist Steering (EPAS)
  Overall steering ratio - 15.5:1
  Turning circle diameter, curb-to-curb (m) 10.9
  Suspension : 4-wheel independent
  - Front : MacPherson strut with stabilizer bar
  - Rear : Multilink with stabilizer bar

  WEIGHTS & CAPACITIES

  Curb weight (kg) : 1,675.1
  Towing Capacity (kg) : 907.1
  Fuel capacity (liters) : 57.9

• INTERIOR

  COMFORT & CONVENIENCE

  Dual-zone automatic climate control with pollen filter
  Rear air conditioning vents
  Power sliding-glass moonroof with one-touch-open feature and interior sunshade
  Power windows with driver's one-touch down/up feature
  Mazda Smart Keyless Entry
  Push Button Start
  Auto-dimming rearview mirror
  Electric parking brake with Auto Hold
  Tilt & telescopic steering column
  Map lights, Dome light and Cargo area light
  Remote fuel-door release
  Rear window defogger with timer

  STORAGE

  Overhead console with sunglasses holder
  Center console armrest with tray and covered storage bin
  Rear seat center armrest with integrated cup holders
  Front and rear door bottle holders/storage
  Driver and Front passenger seatback pockets

  SEATING & TRIM

  5-passenger seating capacity
  8-way power driver's seat with power lumbar support and 2-position memory
  6-way power front passenger seat
  40/20/40 split one-touch fold-down rear seatback
  Adjustable front and rear headrests
  Auburn Nappa Leather-trimmed seats
  Leather-wrapped steering wheel
  Leather-wrapped gear selector
  Carpet floor mats

  AUDIO & INFOTAINMENT

  7" full-color touch screen display
  Bose® 10-speaker audio system with Centerpoint® 2 and AudioPilot® 2
  Bluetooth® hands-free phone and audio capability HD Radio™
  Mazda Navigation System
  Rearview Camera
  MAZDA CONNECT™ Infotainment System
  - Infotainment system voice command
  - Multifunction Commander Control
  - Radio Broadcast Data System program information
  - SMS text message audio delivery and reply
  Apple CarPlay and Android Auto integration
  CD Player (MP3 compatible)
  Auxiliary audio input jack
  USB Inputs, 2 front and 2 rear
  Steering wheel-mounted audio, phone and cruise controls

  INSTRUMENTATION

  Full digital cluster
  Ambient temperature & clock display
  Multi-Information Display (MID) with Trip computer

• EXTERIOR

  BODY

  LED Headlights with Auto-leveling
  LED Daytime Running Lights
  LED fog lights
  LED Combination taillights
  Auto on/off headlights
  Power Rear Liftgate with programmable height adjustment
  Rain-sensing variable-intermittent windshield wipers
  Intermittent rear wiper/washer
  Body-colored power side mirrors with integrated turn signals
  Roof-mounted "shark fin" antenna
  Body-colored rear roof spoiler
  Dual exhaust outlets

  WHEELS & TIRES

  19’’ Alloy wheel wheel
  Temporary spare tire - T145/90D16

  EXTERIOR DIMENSIONS

  Wheelbase (mm) : 2,697
  Track, front (mm) : 1,595
  Track, rear (mm) : 1,521
  Length (mm) : 4,549
  Width (mm) : 1,842
  Height (mm) up to roof, without roof rails : 1,659
  Height (mm) up to roof, without roof rails, up to sharkfin antenna : 1,679
  Minimum ground clearance - Unladen (mm) : 190.5

• SAFETY & SECURITY

  SAFETY

  6 Airbags
  -Advanced front air bags with seat belt-use, passenger-weight sensors
  -Front side-impact air bags and side-impact air curtains with rollover protection
  3-point seat belts for all seating positions
  Front seat belt pretensioners with force limiters
  Side-impact door beams
  Engine-immobilizer antitheft system
  Hill Launch Assist
  LATCH rear seat child safety seat anchors & upper tether anchors
  Child safety rear door locks
  Pedestrian Brake
  Front and rear parking sensor
  360 view monitor
  Anti-lock Brake System (ABS) with Electronic Brake Force Distribution (EBD) & Brake Assist (BA)
  Dynamic Stability Control (DSC)and Traction Control System (TCS)
  Adaptive LED Headlights (ALH)
  Adaptive Front-lighting System (AFS)
  High Beam Control (HBC)
  Advanced Blind Spot Monitoring (BSM) with Rear Cross Traffic Alert (RCTA)
  Full Mazda Radar Cruise Control with Stop and Go Function
  Smart City Brake Support (SCBS)
  Smart Brake Support (SBS)
  Lane Departure Warning (LDWS) with Lane-keep Assist (LKA)
  Tire Pressure Monitoring System (TPMS)
